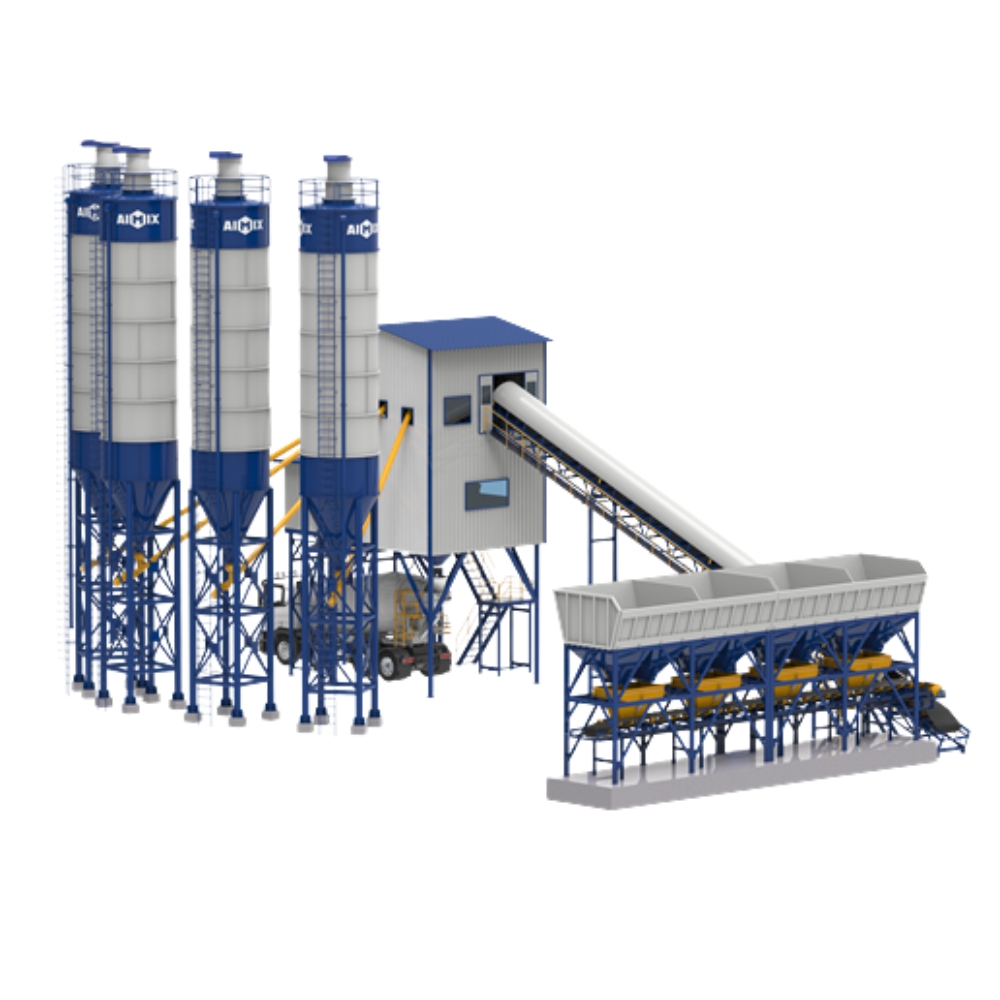

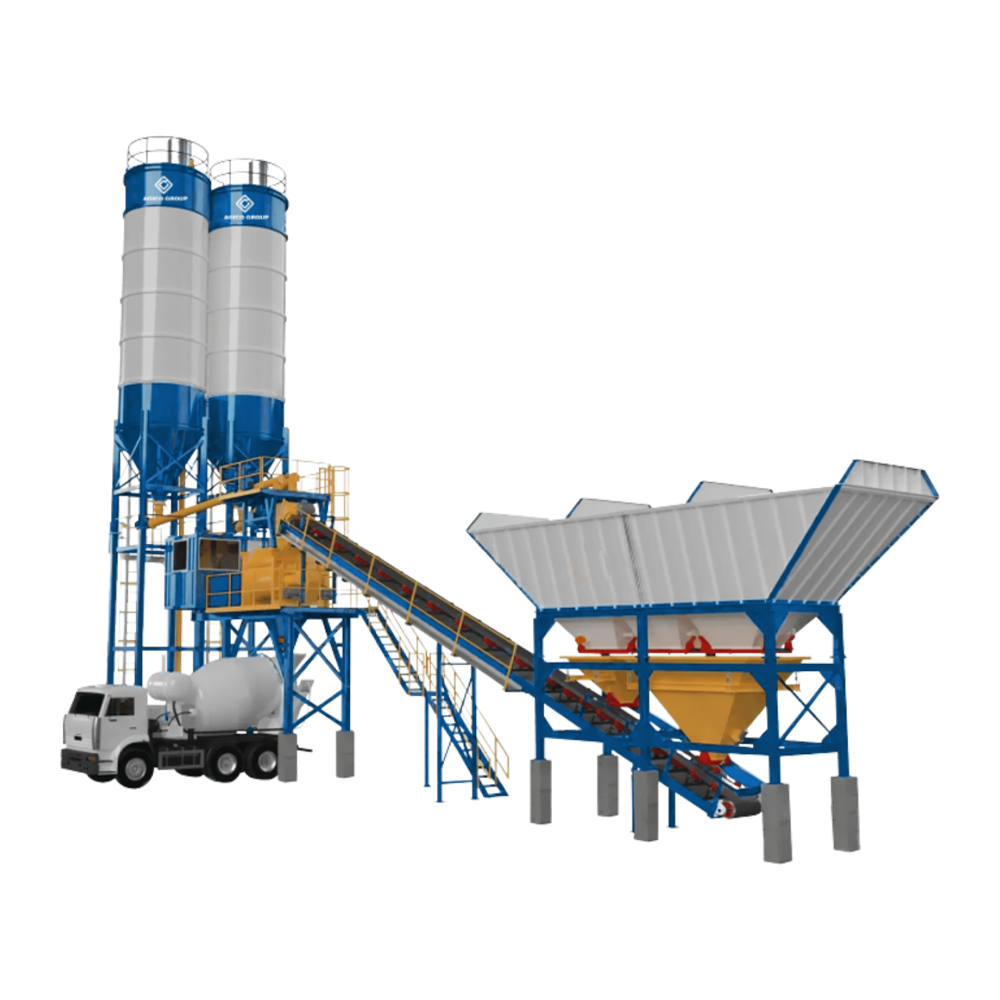

Batching Plant
Description:
A Concrete Batching Plant is a construction machine that combines various ingredients to form concrete. These include cement, water, sand, gravel, and additives. Batching plants ensure uniform quality and accurate mixing for use in building, road construction, bridges, and infrastructure projects.
Key Features:
-
Automated weighing & mixing system
-
High production capacity (20 m³/h to 240 m³/h)
-
Available in stationary and mobile types
-
Easy control via PLC/HMI systems
-
Supports dry mix, wet mix, and precast applications
اعلیٰ معیار کی ہیوی مشینری اور قابل بھروسہ اسپیئر پارٹس ہول سیل نرخوں پر اعلیٰ معیار اورگارنٹی کے ساتھ ابھی رابطہ کریں
Common Concrete Batching Plant Models & Specifications
| Model | Capacity (m³/h) | Mixer Type | Cement Weighing | Aggregate Storage | Control System | Notes |
|---|---|---|---|---|---|---|
| HZS25 | 25 m³/h | Twin Shaft | 300 kg | 2×4 m³ bins | PLC Automatic | Compact, small projects |
| HZS35 | 35 m³/h | Twin Shaft | 500 kg | 3×4 m³ bins | Full Auto | Efficient, low space |
| HZS60 | 60 m³/h | Twin Shaft | 1000 kg | 3×8 m³ bins | HMI + Auto | Medium size, road & bridge |
| HZS90 | 90 m³/h | Twin Shaft | 1500 kg | 4×12 m³ bins | Fully Auto | Heavy-duty, highway use |
| HZS120 | 120 m³/h | Twin Shaft | 2000 kg | 4×15 m³ bins | Full PLC | High output, industrial use |

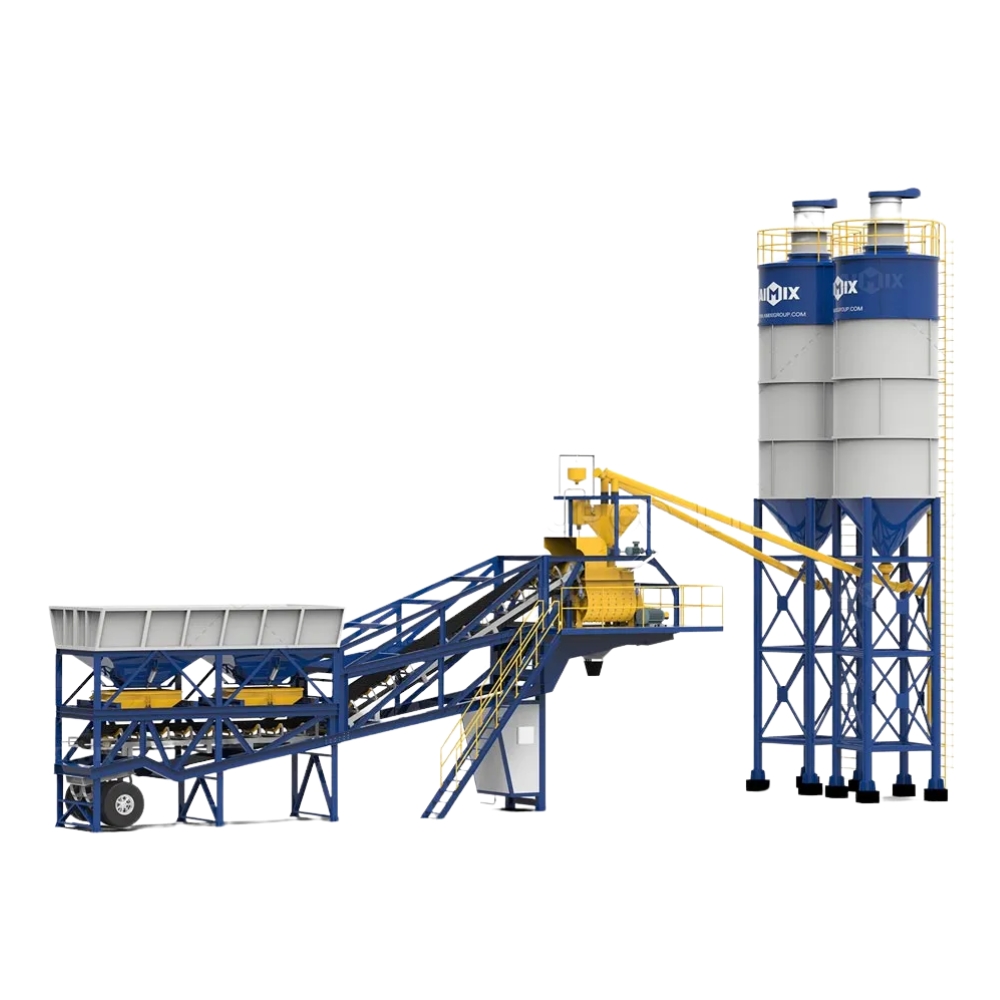

| YHZS35 (Mobile) | 35 m³/h | Twin Shaft | 500 kg | Integrated | Mobile Panel | Quick setup, movable plant |
| YHZS75 (Mobile) | 75 m³/h | Twin Shaft | 1000 kg | Modular Bins | Mobile PLC | Best for temporary sites |
🔩 Main Components:
-
🌀 Mixing System – Twin-shaft mixer for consistent mix
-
🏗️ Aggregate Bins – Stores sand, gravel, stone
-
🎯 Weighing System – Ensures precise ingredient mix
-
🧠 Control Cabinet – PLC/HMI touchscreen
-
🛢️ Cement Silo – Stores bulk cement
-
🚚 Conveyor Belts – Move materials efficiently
🌍 Applications:
-
Ready-mix concrete production
-
Infrastructure & highway projects
-
Bridge, tunnel & airport construction
-
Commercial buildings & precast factories
🤝 Why Buy from IZ International Impex?
-
🔧 New & Used Batching Plants available
-
🌐 Direct import from China
-
🧾 Complete documentation support (LC, BL, Invoice)
-
🚢 DDP Shipping – FCL or LCL
-
🧰 Spare parts & technical support on request
