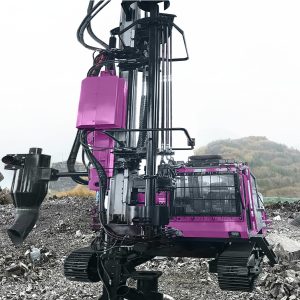

Mining Drilling Rig Crawler DTH Drilling Machine Hydraulic Borehole Drilling Rig

Power Type:Diesel
Engine:298KW
Drilling Diameter:140-190mm
Drilling Depth:Max.35m
Drilling hardness:f=6~20
Feed stroke:5895mm
Feed extension:1400mm
Lifting force:30kn
Method of Feed:motor+roller chain
Climbing capacity:30°
Ground clearance:360 mm
Drilling rod:6+1, φ 89mmX3000/2000mm
DTH hammer:3″/4″/5”
Working Pressure:24bar
Air consumption:24m³/min
Rotary torque (Max.):3600 N. m
Fuel tank capacity:700L
Dimension(L*W*H):9920X2700X3500 mm
Weight:21000KG

Specifications:

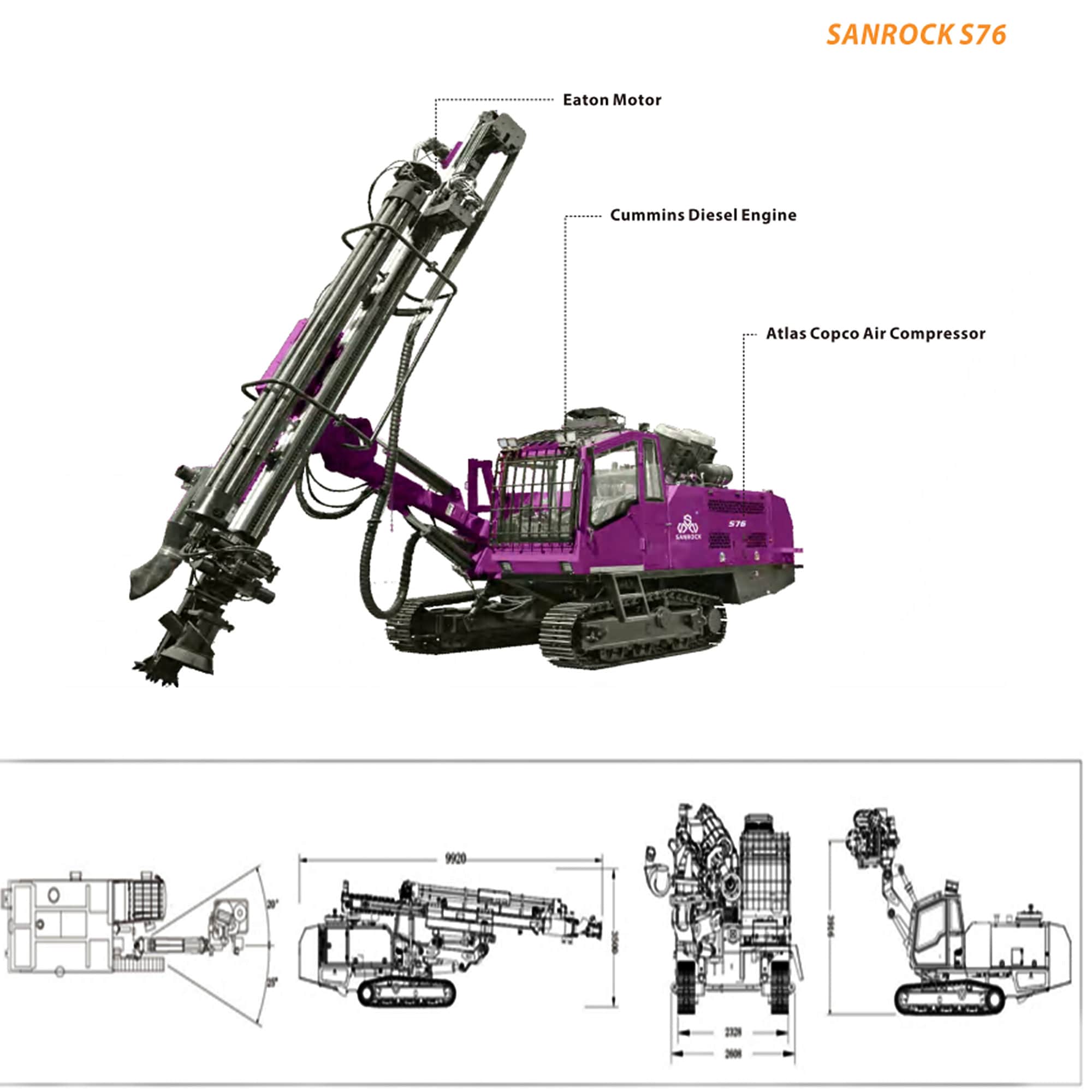

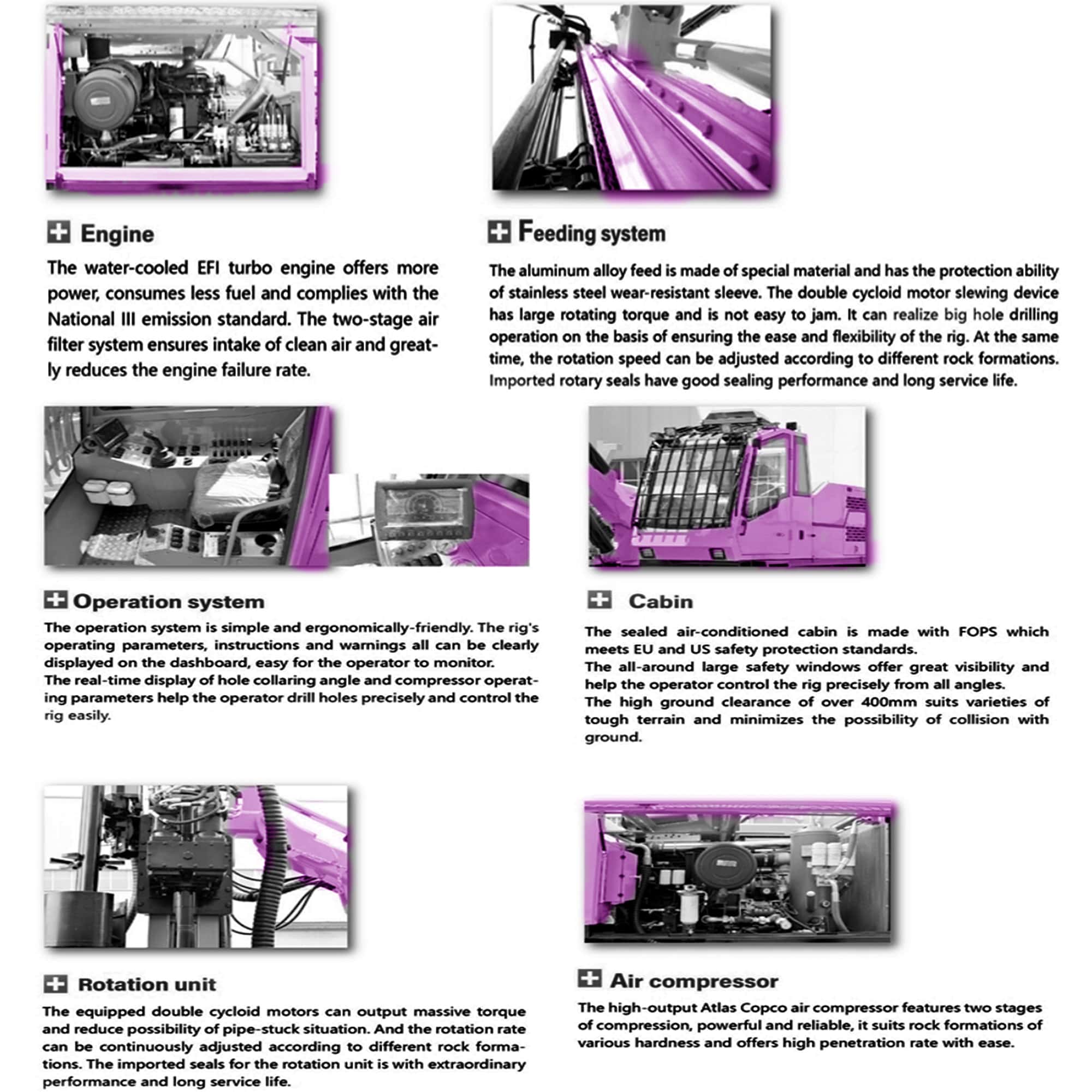

S76 is an All-In-One hydraulic DTH drilling rig, which equipped double cycloid motors can output massive torque and reduce possiblility of pipe-stuck situation. And the rotation rate can be continously adjusted according to differet rock formations. The imported seals for the rotation unit is with extraordinary performance and long service life. The high-output Atlas Copco air compressor features two stages of compression, powerful and realiable.

Mining Drilling Rig Crawler DTH Drilling Machine Hydraulic Borehole Drilling Rig
The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

Application:
It is mainly used for drilling rock hole, such as rock bolt hole, anchor cable hole, blasthole, injected hole etc, at urban construction project, rod construction project, surface mining, high altiude surface mining, foundation pit construction, large scale open-bit mining, road slope protection project etc.
