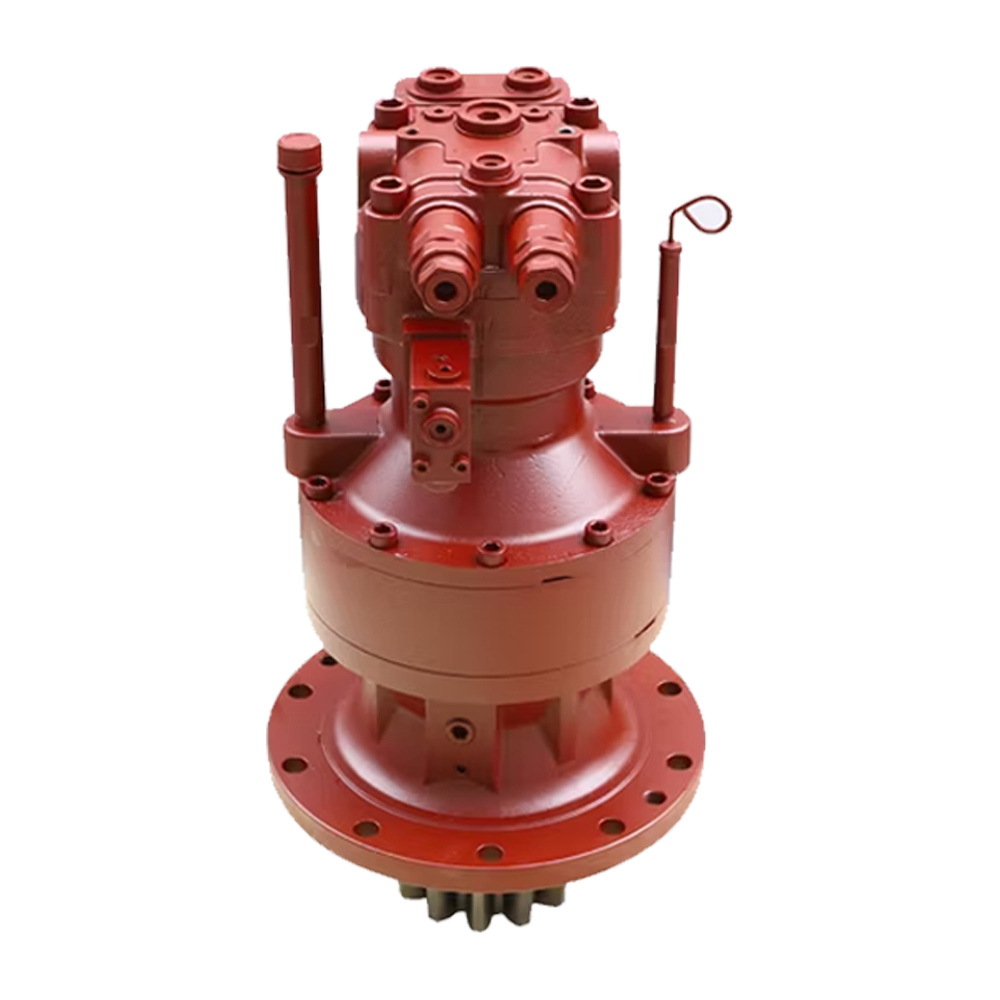

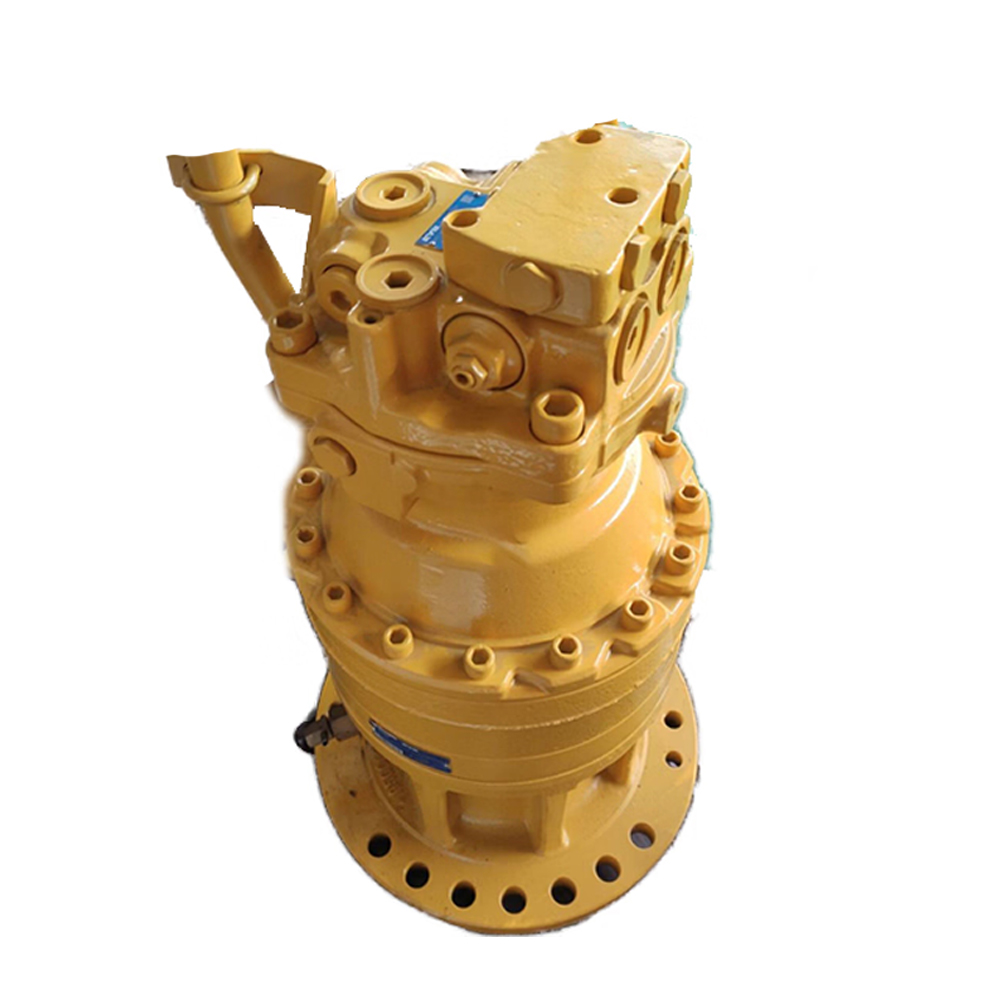

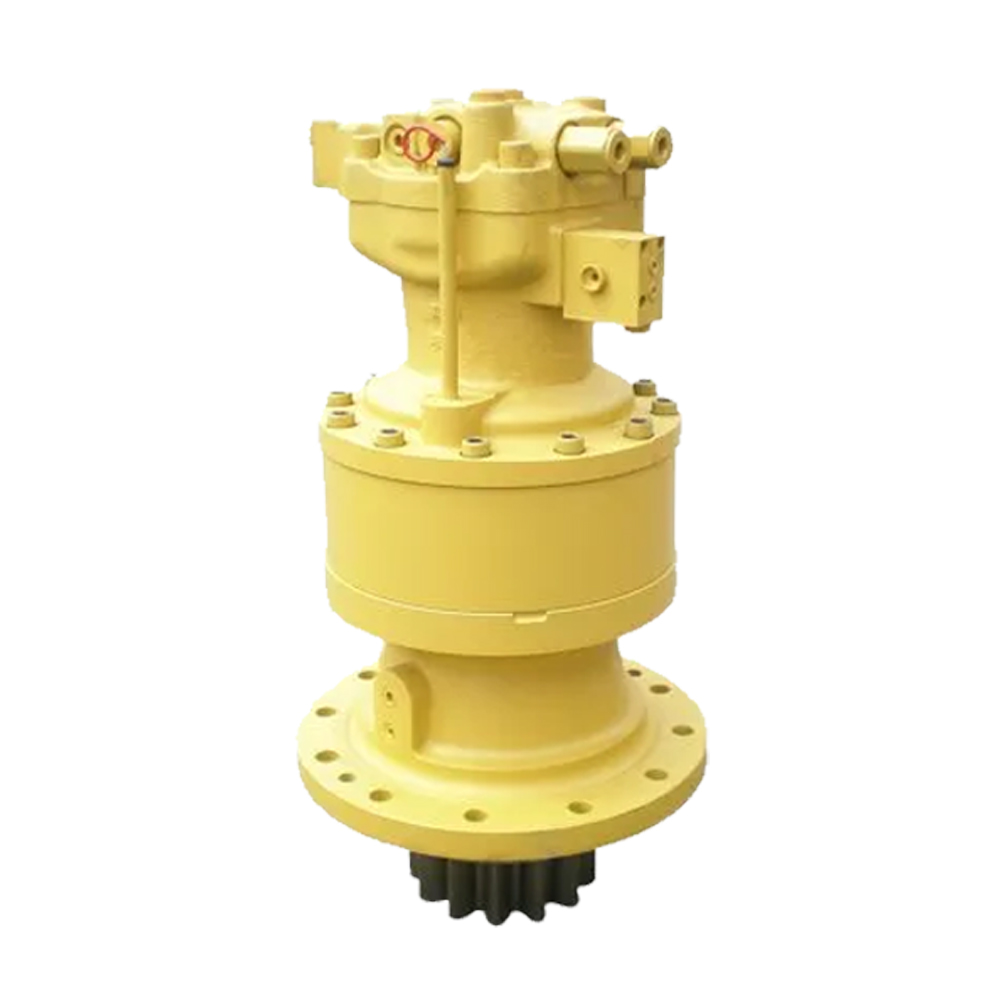

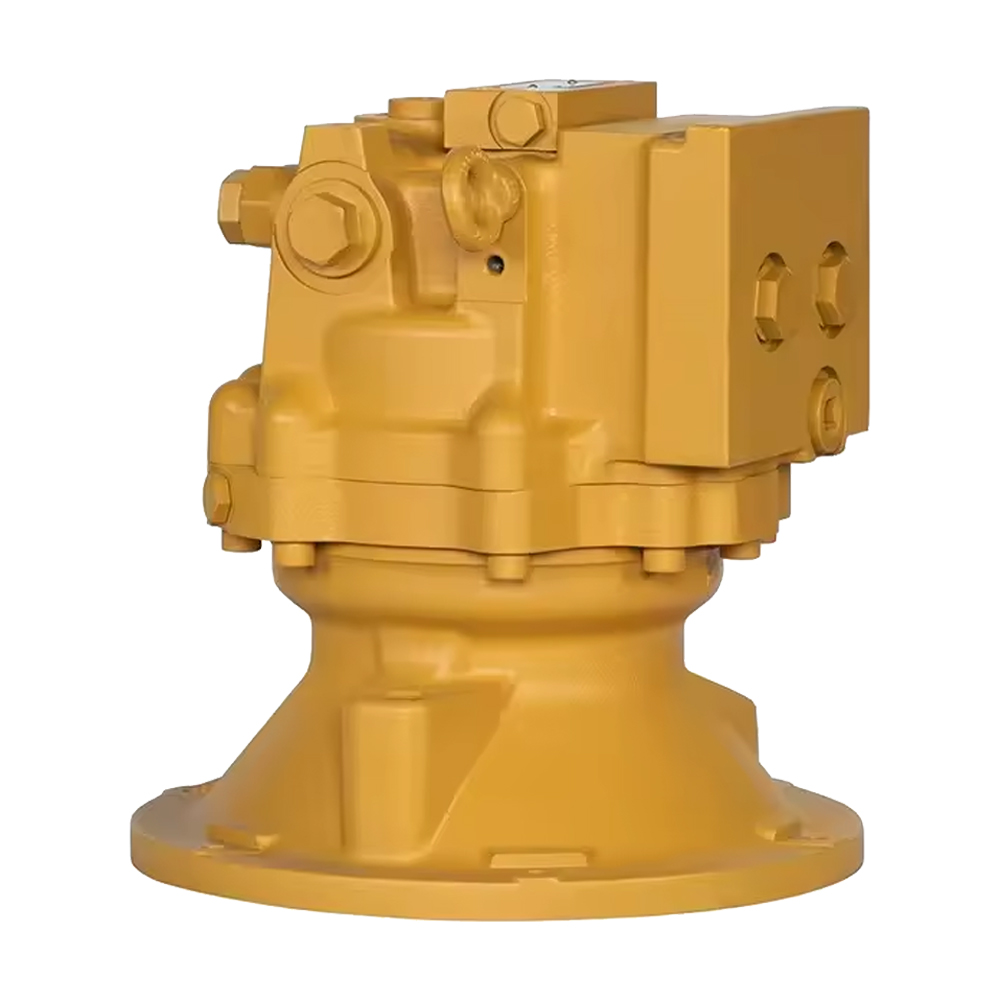

Swing Motor
Description:
A Swing Motor is a hydraulic or electric drive motor used in construction and mining equipment to rotate (swing) the upper structure of a machine (e.g., excavator house, crane turret) relative to the undercarriage or chassis. It enables 360-degree rotation, allowing operators to reposition tools or loads without moving the entire machine.
| Specification | Typical Range / Details |
|---|---|
| Type | Hydraulic (most common), sometimes Electric |
| Operating Pressure | 200 – 350 bar (2900 – 5000 psi) |
| Flow Rate | 40 – 150 L/min (varies by machine size) |
| Torque Output | 1,000 – 80,000 Nm |
| Rotation Speed | 5 – 15 rpm (adjustable) |
| Control | Proportional hydraulic valve or joystick |
| Mounting | Flange-mounted to swing bearing or gear reducer |
| Application | Excavators, cranes, drilling rigs, forestry |
1. Motor Housing
-
Protects internal components.
-
High-strength alloy steel or cast iron.
2. Hydraulic Motor Core
-
May be axial piston, radial piston, or orbital motor type.
-
Converts hydraulic pressure into rotary motion.
3. Rotating Shaft / Output Shaft
-
Transmits torque to the swing reducer (gearbox).
-
Splined or keyed for secure connection.
4. Port Plate / Valve Plate
-
Controls flow into/out of the motor chamber.
-
Directs hydraulic oil into pistons or vanes for rotation.
5. Control Valve Assembly
-
Controls flow and direction.
-
May include safety relief valves, brake release lines.
6. Brake System
-
Typically a multi-disc spring-applied hydraulic-release brake.
-
Holds the upper structure in place when hydraulic flow stops.
7. Seal Kit
-
Prevents oil leakage and contamination.
-
Includes shaft seals, O-rings, backup rings, and dust seals.
8. Bearings
-
High-load thrust and radial bearings.
-
Support rotational movement under heavy loads.
9. Mounting Flange & Bolts
-
Used to connect motor to the swing reducer or machine frame.
-
Heavy-duty bolts handle high torque transfer.
🔧 Swing Motor Related Components / Attachments
| Component | Purpose / Description |
|---|---|
| Swing Gearbox / Reducer | Reduces motor speed and multiplies torque |
| Swing Bearing (Slew Ring) | Connects upper and lower machine structures |
| Rotary Joint (Swivel) | Transfers hydraulic fluid between moving parts |
| Hydraulic Lines / Hoses | Connects swing motor to control valves |
| Brake Release Line | Applies pressure to release the brake |
| Speed Sensor (optional) | Monitors rotation for feedback/control |
🧰 Common Replaceable Spare Parts
-
Seal kits (rod seals, shaft seals, O-rings)
-
Brake discs and springs
-
Valve plates
-
Motor shaft
-
Bearings
-
Mounting bolts and washers
-
Control valve assemblies
-
Speed sensors (if applicable)
🔄 Swing Motor Maintenance Tips
-
Regularly inspect for oil leaks around the housing and output shaft
-
Monitor for abnormal noise or overheating during rotation
-
Replace seals and brake components as per service intervals
-
Ensure hydraulic fluid is clean and at proper pressure
